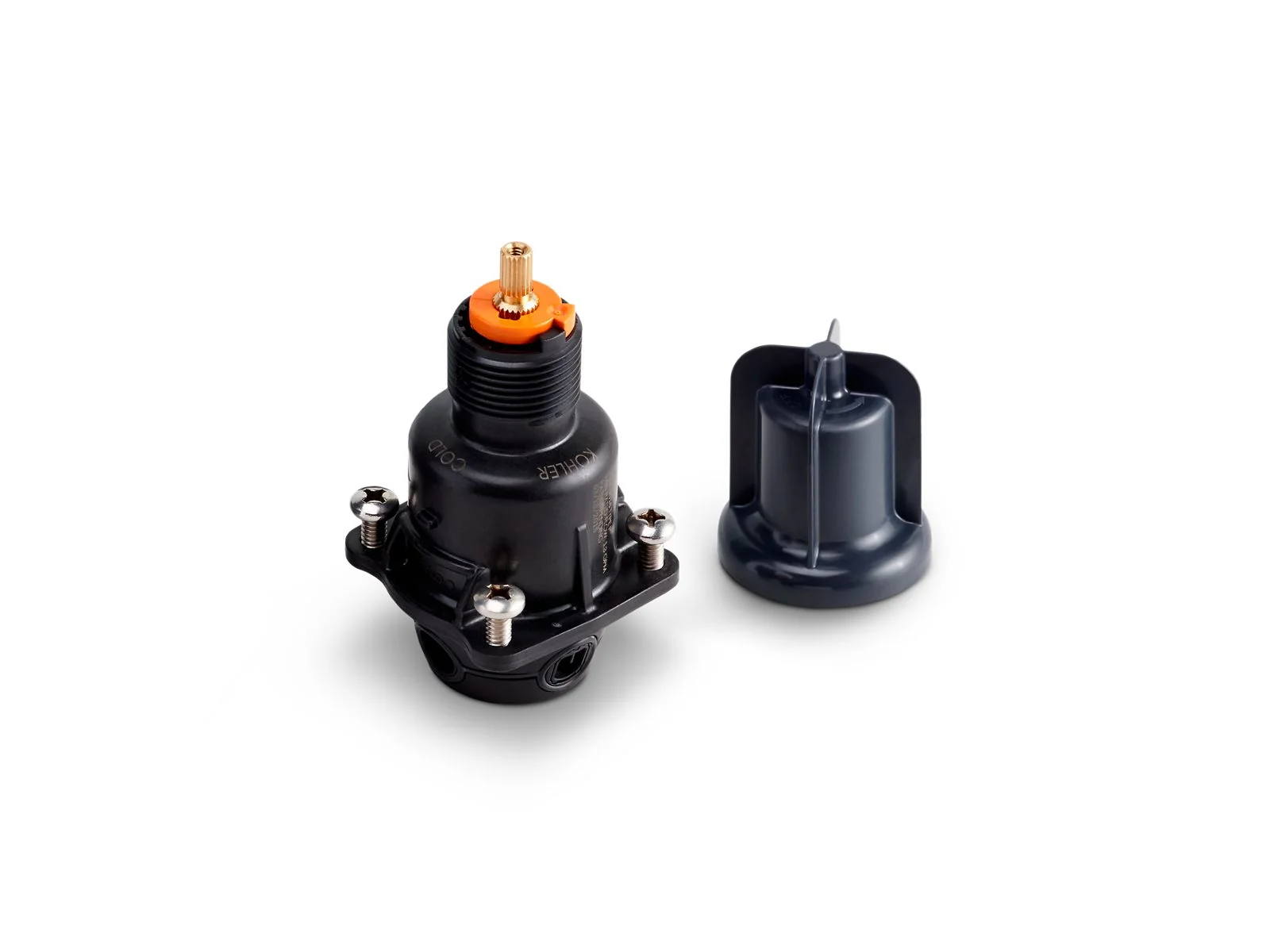

KOHLER K-8305 Rite-Temp Pressure-balancing cartridge
The new KOHLER Rite-Temp valve system sets new standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The new KOHLER Rite-Temp pressure-balance cartridge can be ordered separately or as a complete valve and cartridge kit (K-8304).
- Includes pressure balance cartridge and mud guard
- 5 gpm (18.9 l/min) maximum flow rate at 45 psi
- Single lever design cycles from off through cold to hot
- Antiscald protection
- One-piece cartridge design simplifies installation and maintenance
- Adjustable high-temperature limit stop to control maximum water temperature
- Requires trim and any K-8300 valve body to complete installation (sold separately)
- Pressure-balancing diaphragm technology maintains outlet temperature within +/-3°F during water pressure fluctuations
Additional Resources
Specification Sheet
Installation Guide
Parts Breakdown
Required Products/Accessories
KOHLER K-8300 Series Rite-Temp® Valve Body Rough-ins
Original: $62.77
-65%$62.77
$21.97More Images
KOHLER K-8305 Rite-Temp Pressure-balancing cartridge
The new KOHLER Rite-Temp valve system sets new standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The new KOHLER Rite-Temp pressure-balance cartridge can be ordered separately or as a complete valve and cartridge kit (K-8304).
- Includes pressure balance cartridge and mud guard
- 5 gpm (18.9 l/min) maximum flow rate at 45 psi
- Single lever design cycles from off through cold to hot
- Antiscald protection
- One-piece cartridge design simplifies installation and maintenance
- Adjustable high-temperature limit stop to control maximum water temperature
- Requires trim and any K-8300 valve body to complete installation (sold separately)
- Pressure-balancing diaphragm technology maintains outlet temperature within +/-3°F during water pressure fluctuations
Additional Resources
Specification Sheet
Installation Guide
Parts Breakdown
Required Products/Accessories
KOHLER K-8300 Series Rite-Temp® Valve Body Rough-ins
